Plastic Material PVC Male Union Ball Valve Hassle-Free for Irrigation Water Supply

Model NO. : QX

Structure : Fixed Ball Valve

Type : Fixed Ball Valve

Function : Shutoff

Temperature : Normal Temperature

Standard : DIN, ANSI, NPT, BS, JIS

Application : Industrial Usage, Water Industrial Usage, Household Usage

Color : Light Gray, Deep Gray, Black, White

Quality : EPDM Rubber+PVC Ball+PVC Handle, High Thickness

Package : Plastic Bag Each One, Stron Export Carton

Feature : New Fashion Handle, Easy Use, Long Service Life

Standard Like : DIN, BSPT, ASTM, ANSI

Service : Can with Customer Brand, Different Handle Choose

Transport Package : Carton, Polybag, Color Box or Customized

Specification : 1/2′, 3/4′, 1′, 1-1/4′, 1-1/2′, 2′, 2-1/2′, 3", 4"

Trademark : QX

Origin : China

HS Code : 8481804090

Supply Ability : 70000 Piece /Month

Media : Water

Material : PVC

Connection Form : Socket or Threaded

Driving Mode : Manual

Nominal Pressure : Pn10, Pn16

Channel : Straight Through Type

Samples : US$ 3/Piece 1 Piece(Min.Order) | Request Sample

Customization : Available | Customized Request

MOQ : 1pc

Packaging Details : Customized

Delivery Time : 5-8 days

Payment Terms : L/C,T/T

Contact Now

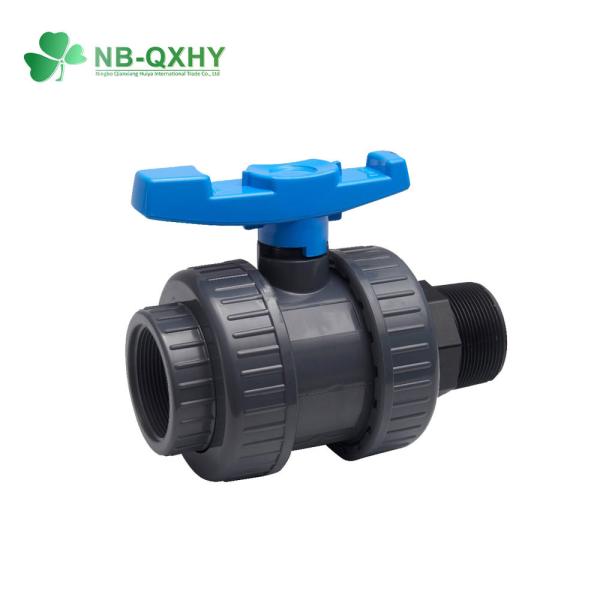

Plastic Material PVC Male Union Ball Valve for Irrigation Water Supply

1. Specification:

*NO.*	*PART*	*Material*	*QTY*
1	Body	UPVC,CPVC	1
2	Stem O-Ring	EPDM,FPM (NBR)	2
3	Stem	UPVC, CPVC	1
4	Ball	UPVC,CPVC	1
5	Seat Seal	TPE,TPV,TPO	2
6	Carrier O-Ring	EPDM,FPM (NBR)	1
7	Seal Carrier	UPVC CPVC	1
8	Union O-Ring	EPDM,FPM (NBR)	1
9	End Connector	UPVC,CPVC	1
10	Union Nut	UPVC,CPVC	1
11	Handle	PVC	1

Plastic Material PVC Male Union Ball Valve Hassle-Free for Irrigation Water Supply

*SIZE*	*DIN(MM)*	*BS(MM)*	*JIS(MM)*	*ANSI(MM)*	*NPT Thd./in*	*BSPT Thd./in*	d	C	E	A	L	D
DN15 (1/2")	20	22	22	21.34	14	14	15	56	79	63	76	28.8
DN20 (3/4")	25	26	26	26.67	14	14	20	60	90	72	87	35
DN25 (1")	32	34	32	33.4	11.5	11	25	69	103	75	101	43
DN32( 1 1/4")	40	42	38	42.16	11.5	11	30	80	122	85	114	52
DN40(1 1/2")	50	48	48	48.26	11.5	11	38	95	139	95	137	62
DN50 (2")	63	60	60	60.33	11.5	11	48	116	166	110	163	75.5
DN65( 21/2")	75	75	76	73.03	8	11	59	139	192	128	198	88.5
DN80 (3")	90	89	89	88.9	8	11	72	170	235	139	230	106
DN100 (4")	110	114	114	114.3	8	11	96	210	277	160	274	131

2. Products advantages:

(1) Raw material, 100% testing before delivery, 99% no leakage, and wonderful torque.

(2) Have cooperated with a lot of importers all over the world.

(3) Professional R&D Team.

(4) Pressure retaining test for each piece.

(5) Excellent flow characteristics and flow control.

(6) Switch test for each piece.

(7) Standard pressure test for each piece

(8) Steady opening and closing, lower torque, ergonomic handle.

(9) Free samples could be sent by request.

3. Production process:

Each product will be done the leakage test!

Plastic Material PVC Male Union Ball Valve Hassle-Free for Irrigation Water Supply

4. Our Other Related Products:

5. Packing and Shipping:

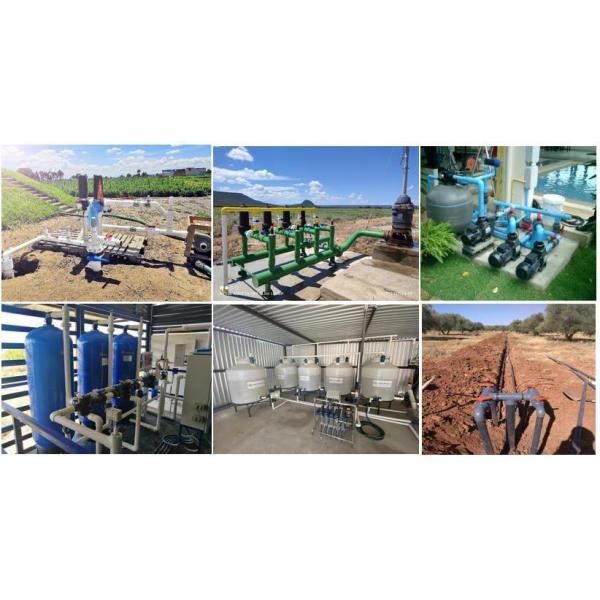

6. Application:

(1) Agricultural irrigation (2) Swimming pool

(3) Sewage treatment (4) Water treatment

(5) Piping system (6) Water recycling project

Plastic Material PVC Male Union Ball Valve Hassle-Free for Irrigation Water Supply

7. Certificate:

Plastic Material PVC Male Union Ball Valve Hassle-Free for Irrigation Water Supply

8. Our strength:

About product:

(1) 100% new materials.

(2) Environmental friendly product with non-toxic.

(3) Good looking and life long service.

(4) Quality will be strongly controlled while producing, testing and packing before leaving the factory.

(5) Wonderful ability in chemical corrosion resistance.

(6) Easy and fast installation, lowering the cost.

(7) Customized.

About service:

(1) We have full exporting experience to Southeast Asia, Africa, Middle east, North America and South America.

(2) Different quality and thickness valves with various style offered to meet customer's need from region to region.

(3) Free samples offered.

(4) Each order will be carefully taken of even the order quantity is small.

(5) After-sale will be responded and solved in short time.

(6) OEM is available.

(7)Quick and stable delivery time.
